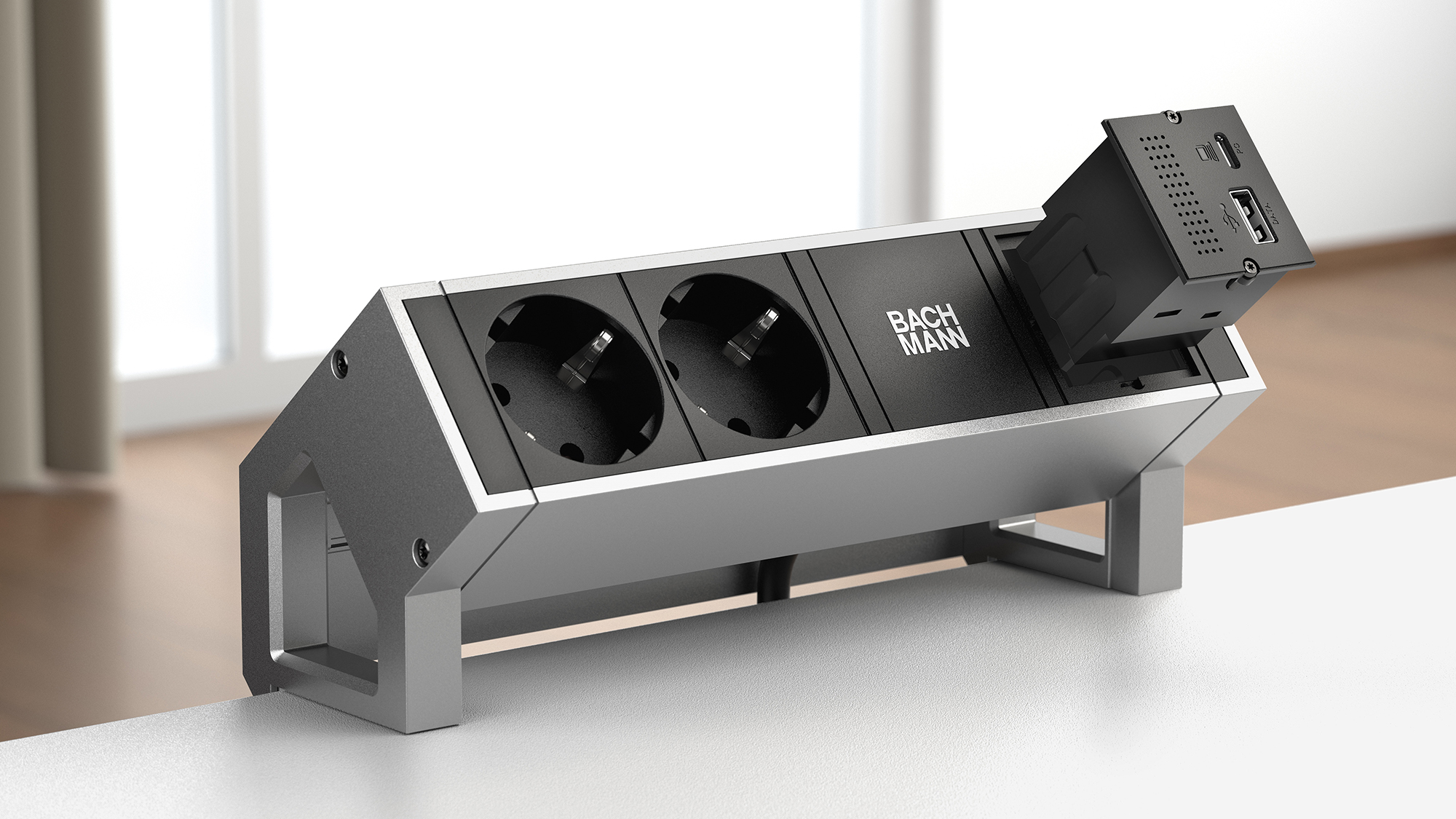

CM Mini Port Replicator

CM Mini Port Replicator

CM Mini Port Replicator

Everything that a workplace needs
  • All-in-one supply
  • Charging, Internet, screen
  • Enhances tidiness and aesthetics
  • For DESK 2, CONI and co

Internet connection, power supply, screen connection – the Mini Port Replicator bundles everything together that a laptop needs and integrates it clearly and neatly into one connection panel. This means that the entire desk arrangement can be set up with just one cable and the work surface remains tidy and free of cables.

Docking stations, port replicators and similar devices do indeed ensure that the cables powering the laptop are bundled together. However, they shift the interfaces to the work surface, take up space and disrupt the clean work aesthetics that characterize functional and aesthetic desks.

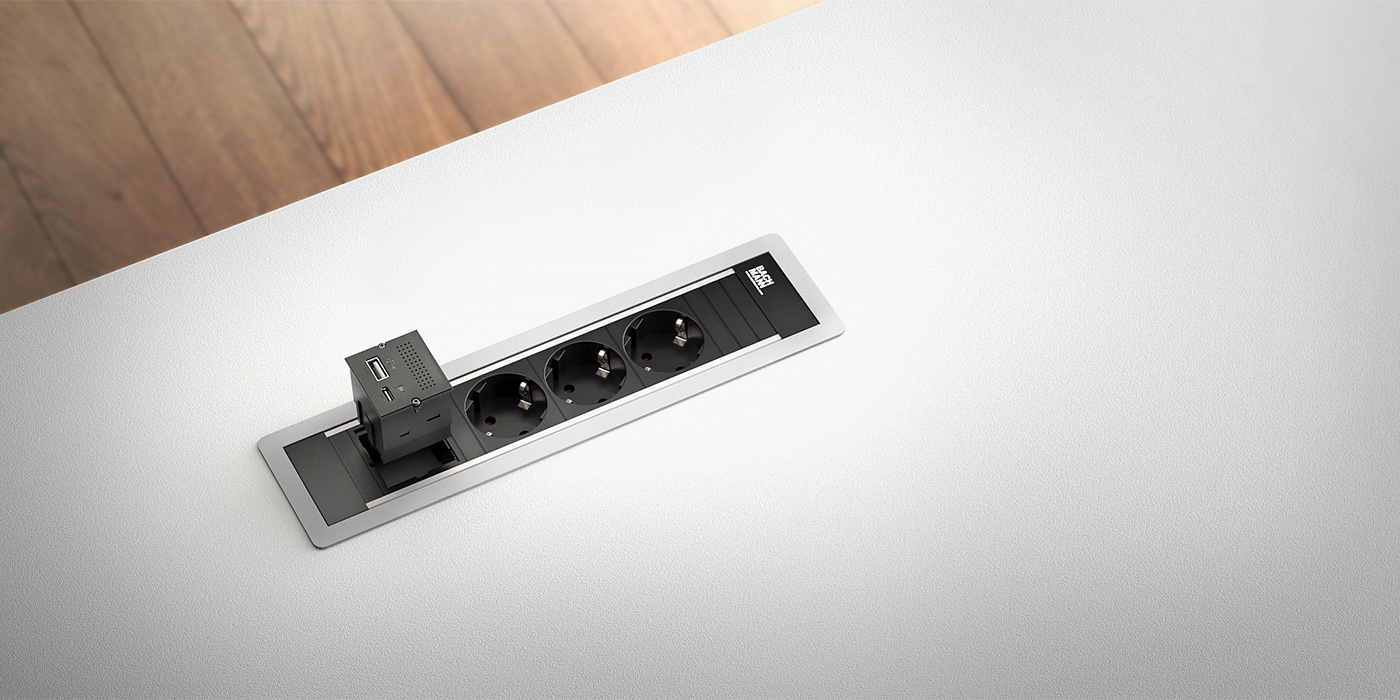

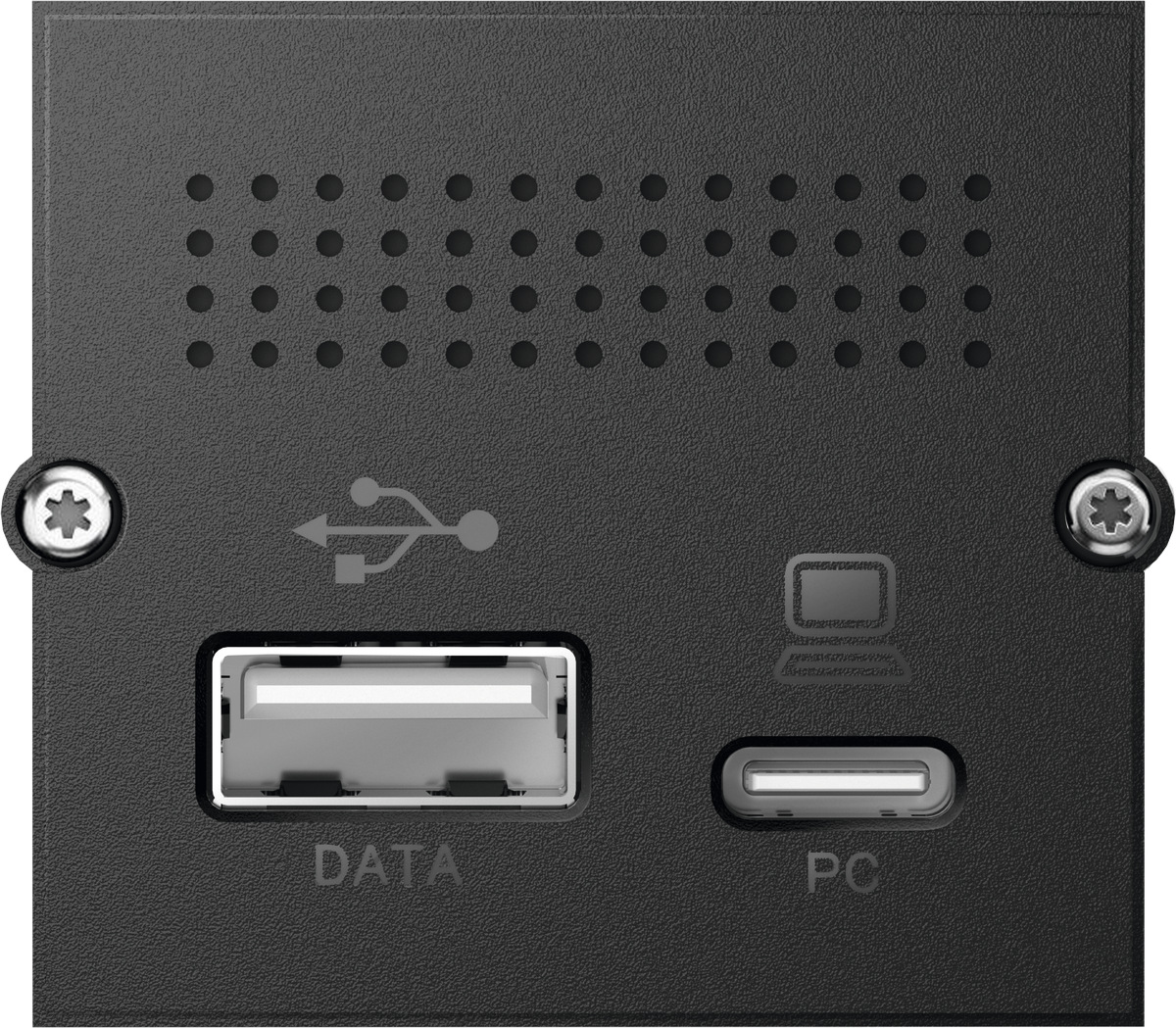

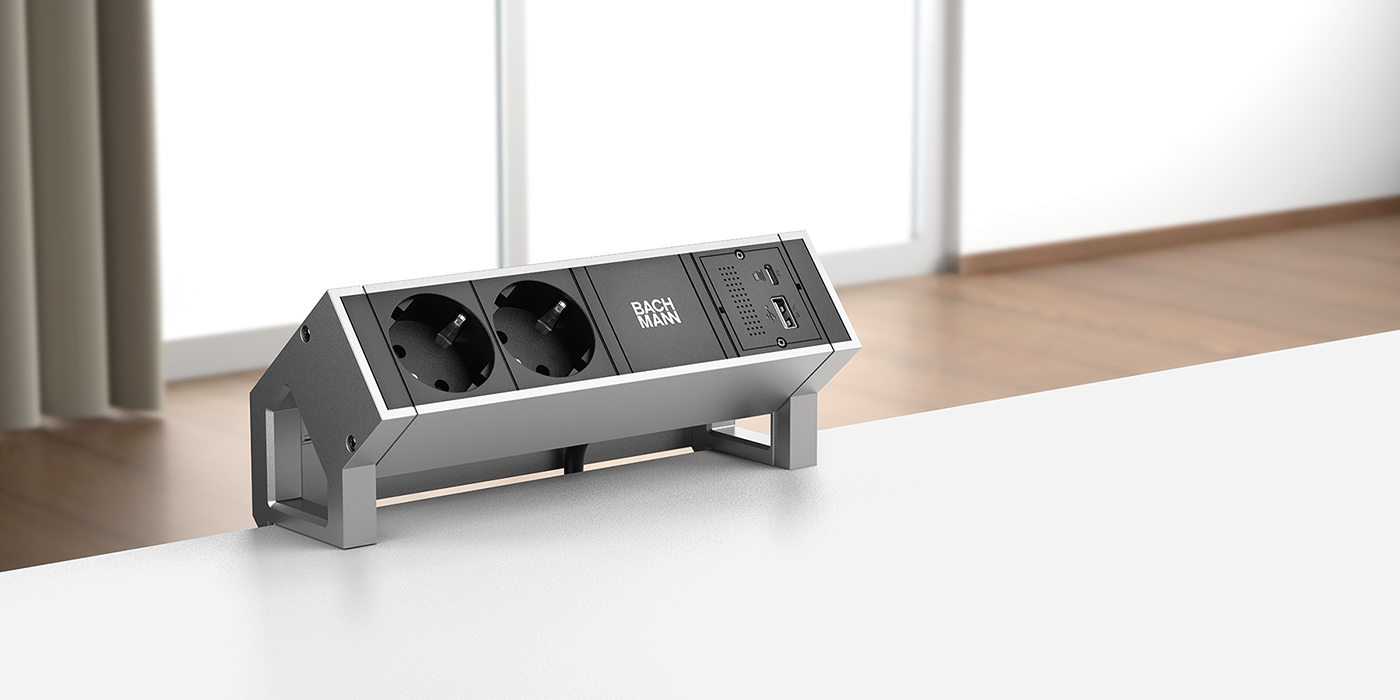

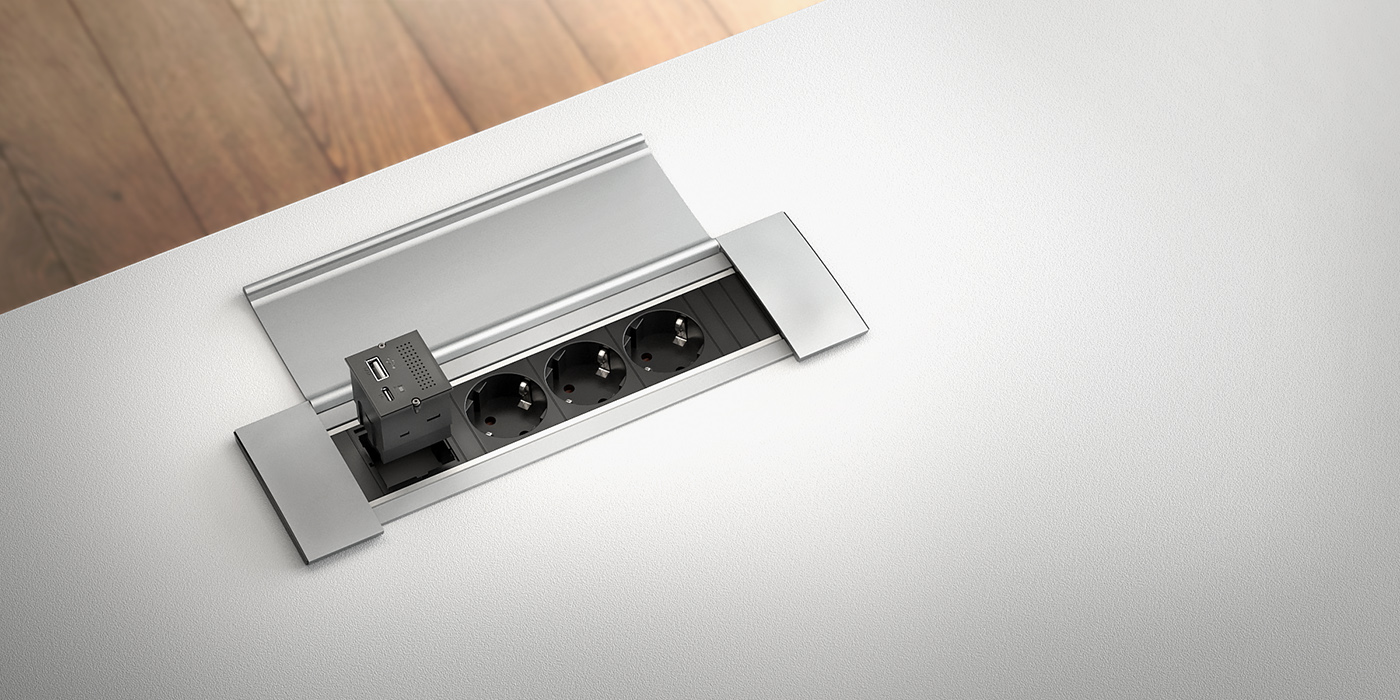

With the Mini Port Replicator, this optimized interface can now be integrated into a DESK 2, POWER FRAME, CONI or another connector point of your choice. Cables and extensions are kept away from the work surface. The Mini Port Replicator is connected to the laptop via USB-C – and the laptop is supplied with electricity, projected onto a screen and connected to the Internet. The Mini Display Port, USB-A, and network connections are available on the back side. There are two USB-A connections available for additional devices such as a mouse or headset. The entire system operates on the Plug&Play principle. The Mini Port Replicator is supplied with electricity via USB-C, either directly via USB-C or via a power supply unit.

The Mini Port Replicator is perfect for both open-plan and single-occupancy offices, huddle rooms and other meeting rooms and shared areas. In particular, it makes it easier for a desk to be used by various different people as part of a desk sharing scheme.

The Mini Port Replicator is a key addition to the Custom Modules from BACHMANN – an exchangeable and interchangeable component that has a major impact on the neatness and aesthetics of the existing or new workplace. BACHMANN also provides suitable accessories to round off the system.

CM Mini Port Replicator

CM Mini Port Replicator

Charging adapter

Charging adapter

Feature list

Charging adapter

918.194
Feature list USB PD 65 W charging adapter with USB type C plug and 1.5 m breakout cable
Input: AC 100 V-240 V~/1.5 A /50/60 Hz
Output type C 5 V~3 A / 9 V~3 A / 12 V~3 A / 15 V~3 A / 20 V~3.25 A
Black
Show more

CM Mini Port Replicator

Custom Module Mini Port Replicator

Custom Module Mini Port Replicator

Feature list

Custom Module Mini Port Replicator

917.229
Feature list Custom Module Mini Replicator
USB type C 3.1 PD 100 W (20 VDC/3.0 A)
2X USB type A data (5 V 500 mA max.)
Mini DisplayPort 1.2 (UHD 3840x2160 @ 60 Hz)
Ethernet 100 Mbps RJ45 socket
Power input USB type C 100 W
Show more

CM Mini Port Replicator

IEC C5 and CEE plug adapter cable

IEC C5 and CEE plug adapter cable

Feature list

IEC C5 and CEE plug adapter cable

304.1054
Feature list Cable for IEC C5 socket to CEE7/7 plug charging adapter
Side 1: BS13A plug
Side 2: IEC C5 socket
Length 1.0 m H05VV-F 3G 0.75 mm²
Black
Show more

CM Mini Port Replicator

IEC C5 and UK plug adapter cable

IEC C5 and UK plug adapter cable

Feature list

IEC C5 and UK plug adapter cable

304.1055
Feature list Cable for IEC C5 socket to UK plug charging adapter
Side 1: BS13A plug
Side 2: IEC C5 socket
Length 1.0 m H05VV-F 3G 0.75 mm²
Black
Show more

CM Mini Port Replicator

Mini DisplayPort / DisplayPort connection cable

Mini DisplayPort / DisplayPort connection cable

Feature list

Mini DisplayPort / DisplayPort connection cable

918.204
Feature list Mini DisplayPort to DisplayPort connection cable
Side 1: Mini DisplayPort 1.2
Side 2: DisplayPort 1.2
Length 1.5m
Black
Show more

CM Mini Port Replicator

Mini DisplayPort / HDMI connection cable

Mini DisplayPort / HDMI connection cable

Feature list

Mini DisplayPort / HDMI connection cable

918.205
Feature list Mini Display Port to HDMI connection cable
4K60Hz
Side 1: Mini DisplayPort 1.2
Side 2: HDMI 2.0
Length 1.5m
Black
Show more

CM Mini Port Replicator

USB 3.1 Type-C connection cable

USB 3.1 Type-C connection cable

Feature list

USB 3.1 Type-C connection cable

918.203
Feature list Connection cable USB C 3.1
Gen 2, PD 100 W
Side 1: USB Type-C plug and side 2: USB Type C plug
Length 1.0 m
Show more
