Measurement per phase and outlet, switchable, network-capable and multifunctional
  • Measurement per phase and switchable outlets
  • Display with rotatable screen
  • Optional technology modules such as RCM type B
  • Cost benefit through Master/Slave cascading

Measurement per phase and outlet, switchable, network-capable and multifunctional

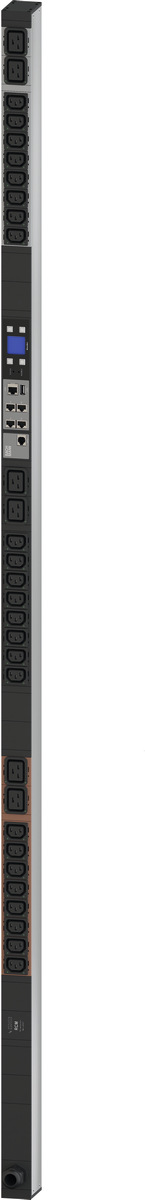

The BN7500 is an intelligent PDU (Power Distribution Unit) with a comprehensive range of functions. As with the BN7000, it enables professional energy and capacity management through network-capable measurements for each phase and outlet at PDU level, plus switching per outlet. In addition, measurement values for each outlet can be monitored. Two sensor ports support rack monitoring with optional temperature and air humidity sensors.

Thanks to its compact design (1U), installing the BN7500 is flexible and space-saving, and therefore enables optimised cabling and air flow in the server rack.

Whether on-site or remotely via Ethernet: energy consumption measurements can be viewed locally on the display or via the web server using the clear and highly functional software interface. Furthermore, the BN7500 can be integrated into third-party software systems via SNMP or Modbus TCP, for example. Granular measurement recording accompanied by neutral conductor monitoring and RCM type B (as an option) ensures maximum safety in the data centre. In addition, intelligent Master/Slave cascading in the PDU network enables cost-optimised network management.

The following measurement values are displayed per phase and outlet on the illuminated display and in the integrated web server:

    • Current [A]

    • Neutral conductor current [A] for three-phase versions]

    • Voltage [V]

    • Frequency [Hz]]

    • Active power [kW]

    • Reactive power [kVAr]

    • Apparent power [kVA]

    • Active energy [kWh]

    • Reactive energy [kVArh]

    • Apparent energy [kVAh]

    • Power factor]

    Furthermore, the flexible design of the PDU and different technology modules make a multitude of customised versions possible.

    Optional technology modules:

    Residual Current Monitoring (RCM type B) AC [mA] and DC [mA], Surge Protection Device (SPD), GPIO module, housing colour, temperature and air humidity sensors

    This PDU is available as a 19" version or for vertical installation.

    BN7500

    BN7500

    16 A / 230 V

    16 A / 230 V

    Number of socket outlets with earthing contact
    Number of C13 sockets
    Number of C19 sockets

    Plug

    Cable type

    Miniature circuit breaker

    16 A / 230 V

    802.7502
    Number of socket outlets with earthing contact 4
    Number of C13 sockets 18
    Number of C19 sockets

    16 A / 230 V

    CEE 16A

    16 A / 230 V

    H05VV-F 3G 2,50 mm²

    16 A / 230 V

    16 A / 230 V

    802.7500
    Number of socket outlets with earthing contact
    Number of C13 sockets 18
    Number of C19 sockets 4

    16 A / 230 V

    CEE 16A

    16 A / 230 V

    H05VV-F 3G 2,50 mm²

    16 A / 230 V

    Show more

    BN7500

    16 A / 230 V / Residual Current Monitoring per supply cable

    16 A / 230 V / Residual Current Monitoring per supply cable

    Number of socket outlets with earthing contact
    Number of C13 sockets
    Number of C19 sockets

    Plug

    Cable type

    Miniature circuit breaker

    16 A / 230 V / Residual Current Monitoring per supply cable

    802.7531
    Number of socket outlets with earthing contact
    Number of C13 sockets 18
    Number of C19 sockets 4

    16 A / 230 V / Residual Current Monitoring per supply cable

    CEE 16A

    16 A / 230 V / Residual Current Monitoring per supply cable

    H05VV-F 3G 2,50 mm²

    16 A / 230 V / Residual Current Monitoring per supply cable

    Show more

    BN7500

    16 A / 400 V

    16 A / 400 V

    Number of socket outlets with earthing contact
    Number of C13 sockets
    Number of C19 sockets

    Plug

    Cable type

    Miniature circuit breaker

    16 A / 400 V

    802.7506
    Number of socket outlets with earthing contact
    Number of C13 sockets 18
    Number of C19 sockets 3

    16 A / 400 V

    CEE 16A

    16 A / 400 V

    H05VV-F 5G 2,50 mm²

    16 A / 400 V

    16 A / 400 V

    802.7508
    Number of socket outlets with earthing contact
    Number of C13 sockets 24
    Number of C19 sockets 6

    16 A / 400 V

    CEE 16A

    16 A / 400 V

    H05VV-F 5G 2,50 mm²

    16 A / 400 V

    Show more

    BN7500

    16 A / 400 V / Residual Current Monitoring per phase

    16 A / 400 V / Residual Current Monitoring per phase

    Number of socket outlets with earthing contact
    Number of C13 sockets
    Number of C19 sockets

    Plug

    Cable type

    Miniature circuit breaker

    16 A / 400 V / Residual Current Monitoring per phase

    802.7521
    Number of socket outlets with earthing contact
    Number of C13 sockets 24
    Number of C19 sockets 6

    16 A / 400 V / Residual Current Monitoring per phase

    CEE 16A

    16 A / 400 V / Residual Current Monitoring per phase

    H05VV-F 5G 2,50 mm²

    16 A / 400 V / Residual Current Monitoring per phase

    Show more

    BN7500

    32 A / 230 V

    32 A / 230 V

    Number of socket outlets with earthing contact
    Number of C13 sockets
    Number of C19 sockets

    Plug

    Cable type

    Miniature circuit breaker

    32 A / 230 V

    802.7501
    Number of socket outlets with earthing contact
    Number of C13 sockets 16
    Number of C19 sockets 4

    32 A / 230 V

    CEE 32A

    32 A / 230 V

    H05VV-F 3G 4,00 mm²

    32 A / 230 V

    2 x C16A

    32 A / 230 V

    802.7524
    Number of socket outlets with earthing contact
    Number of C13 sockets 24
    Number of C19 sockets 4

    32 A / 230 V

    CEE 32A

    32 A / 230 V

    H05VV-F 3G 4,00 mm²

    32 A / 230 V

    2 x C16A
    Show more

    BN7500

    32 A / 230 V / Residual Current Monitoring per supply cable

    32 A / 230 V / Residual Current Monitoring per supply cable

    Number of socket outlets with earthing contact
    Number of C13 sockets
    Number of C19 sockets

    Plug

    Cable type

    Miniature circuit breaker

    32 A / 230 V / Residual Current Monitoring per supply cable

    802.7532
    Number of socket outlets with earthing contact
    Number of C13 sockets 16
    Number of C19 sockets 4

    32 A / 230 V / Residual Current Monitoring per supply cable

    CEE 32A

    32 A / 230 V / Residual Current Monitoring per supply cable

    H05VV-F 3G 4,00 mm²

    32 A / 230 V / Residual Current Monitoring per supply cable

    2 x C16A
    Show more

    BN7500

    32 A / 400 V

    32 A / 400 V

    Number of socket outlets with earthing contact
    Number of C13 sockets
    Number of C19 sockets

    Plug

    Cable type

    Miniature circuit breaker

    32 A / 400 V

    802.7511
    Number of socket outlets with earthing contact 6
    Number of C13 sockets 24
    Number of C19 sockets

    32 A / 400 V

    CEE 32A

    32 A / 400 V

    H05VV-F 5G 4,00 mm²

    32 A / 400 V

    6 x C16A

    32 A / 400 V

    802.7509
    Number of socket outlets with earthing contact
    Number of C13 sockets 24
    Number of C19 sockets 6

    32 A / 400 V

    CEE 32A

    32 A / 400 V

    H05VV-F 5G 4,00 mm²

    32 A / 400 V

    6 x C16A
    Show more

    BN7500

    32 A / 400 V / Residual Current Monitoring per phase

    32 A / 400 V / Residual Current Monitoring per phase

    Number of socket outlets with earthing contact
    Number of C13 sockets
    Number of C19 sockets

    Plug

    Cable type

    Miniature circuit breaker

    32 A / 400 V / Residual Current Monitoring per phase

    802.7530
    Number of socket outlets with earthing contact
    Number of C13 sockets 24
    Number of C19 sockets 6

    32 A / 400 V / Residual Current Monitoring per phase

    CEE 32A

    32 A / 400 V / Residual Current Monitoring per phase

    H05VV-F 5G 4,00 mm²

    32 A / 400 V / Residual Current Monitoring per phase

    6 x C16A
    Show more
