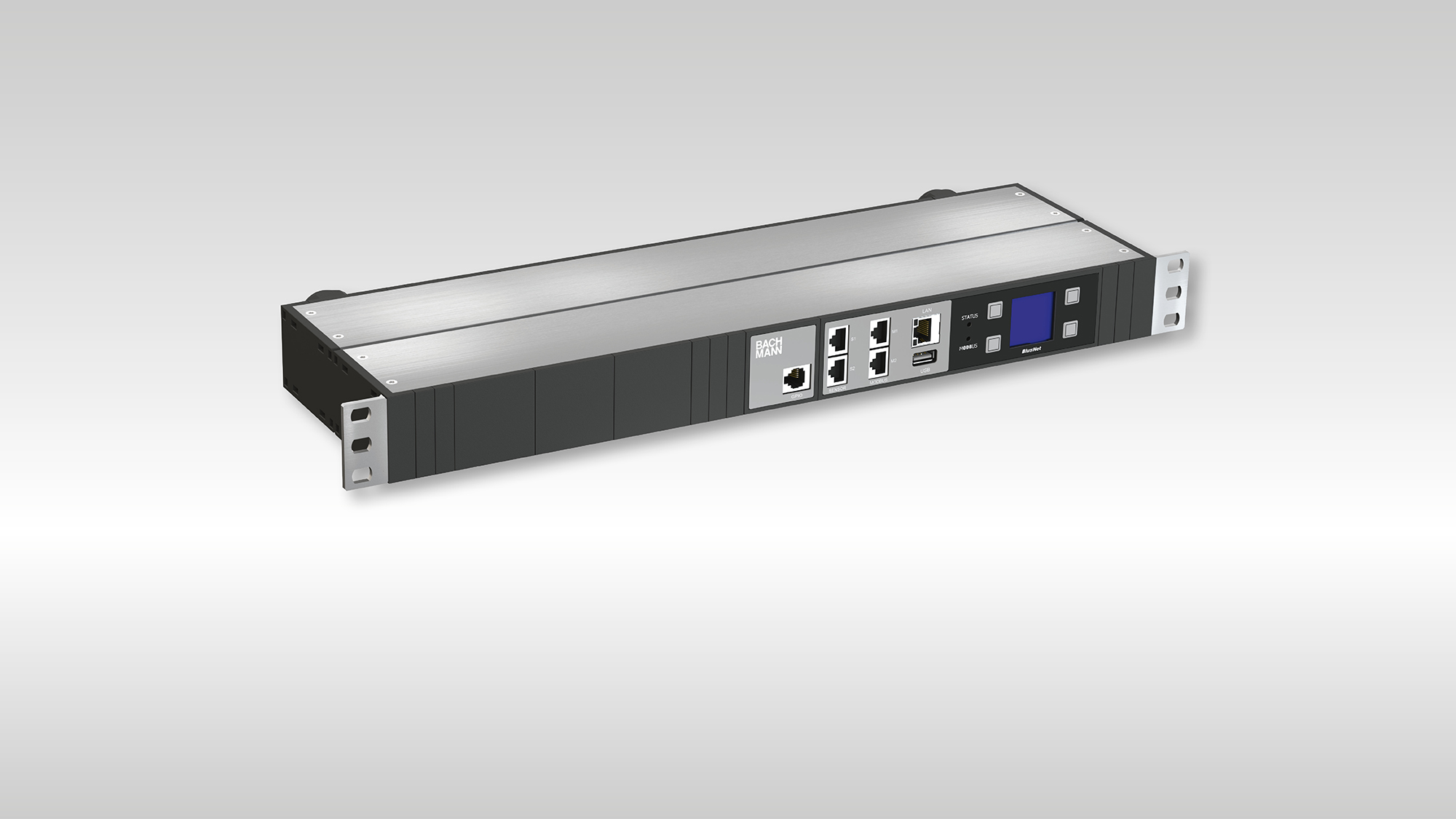

BN3000 Inline

BN3000 Inline

BN3000 Inline

Measurement per phase, network-capable and multifunctional
  • Measurement per phase
  • Display with rotatable screen
  • Optional technology modules such as RCM type B
  • Cost benefit through master/slave cascading

Measurement per phase, network-capable and multifunctional

The BN3000 Inline is the ideal intermediary retrofit solution for equipping existing installations in data centres with the functions of the BN3000 at a later date. The BN3000 Inline enables professional energy and capacity management through network-capable measurements per phase at PDU level.

Whether on-site or remotely via Ethernet: energy consumption measurements can be viewed locally on the display or via the web server using the clear and highly functional software interface. Granular measurement recording accompanied by neutral conductor monitoring and RCM type B (as an option) ensures maximum safety in the data centre. In addition, intelligent master/slave cascading in the PDU network enables cost-optimised network management.

The following measurement values are displayed for each phase on the illuminated display and in the integrated web server:

    • Current [A]

    • Neutral conductor current [A] for three-phase versions]

    • Voltage [V]

    • Frequency [Hz]]

    • Active power [kW]

    • Reactive power [kVAr]

    • Apparent power [kVA]

    • Active energy [kWh]

    • Reactive energy [kVArh]

    • Apparent energy [kVAh]

    • Power factor]

    Optional technology modules:

    Residual Current Monitoring (RCM type B) AC [mA] and DC [mA], Surge Protection Device (SPD), GPIO module, housing colour

    This PDU is available as a 19" version or for vertical installation.

    Further product configurations available on request.

    BN3000 Inline

    BN3000 (230-400 V / 50 Hz) | incl. mounting kit

    • Power input: 3.0 m H05VV-F with CEE plug
    • Power output: 3.0 m H05VV-F with CEE coupling

    16 A / 230 V

    16 A / 230 V

    Slave variant

    Phase(s)

    Current per phase (A)

    16 A / 230 V

    802.3069

    16 A / 230 V

    -

    16 A / 230 V

    1

    16 A / 230 V

    16 A
    Show more

    16 A / 230 V / Residual Current Monitoring per supply cable

    16 A / 230 V / Residual Current Monitoring per supply cable

    Slave variant

    Phase(s)

    Current per phase (A)

    16 A / 230 V / Residual Current Monitoring per supply cable

    802.3072

    16 A / 230 V / Residual Current Monitoring per supply cable

    -

    16 A / 230 V / Residual Current Monitoring per supply cable

    1

    16 A / 230 V / Residual Current Monitoring per supply cable

    16 A
    Show more

    16 A / 400 V

    16 A / 400 V

    Slave variant

    Phase(s)

    Current per phase (A)

    16 A / 400 V

    802.3067

    16 A / 400 V

    -

    16 A / 400 V

    3

    16 A / 400 V

    16 A
    Show more

    16 A / 400 V / Residual Current Monitoring per supply cable

    16 A / 400 V / Residual Current Monitoring per supply cable

    Slave variant

    Phase(s)

    Current per phase (A)

    16 A / 400 V / Residual Current Monitoring per supply cable

    802.3039

    16 A / 400 V / Residual Current Monitoring per supply cable

    -

    16 A / 400 V / Residual Current Monitoring per supply cable

    3

    16 A / 400 V / Residual Current Monitoring per supply cable

    16 A
    Show more

    32 A / 230 V / Residual Current Monitoring per supply cable

    32 A / 230 V / Residual Current Monitoring per supply cable

    Slave variant

    Phase(s)

    Current per phase (A)

    32 A / 230 V / Residual Current Monitoring per supply cable

    802.3071

    32 A / 230 V / Residual Current Monitoring per supply cable

    -

    32 A / 230 V / Residual Current Monitoring per supply cable

    1

    32 A / 230 V / Residual Current Monitoring per supply cable

    32 A
    Show more

    32 A / 400 V / Residual Current Monitoring per supply cable

    32 A / 400 V / Residual Current Monitoring per supply cable

    Slave variant

    Phase(s)

    Current per phase (A)

    32 A / 400 V / Residual Current Monitoring per supply cable

    802.3065

    32 A / 400 V / Residual Current Monitoring per supply cable

    -

    32 A / 400 V / Residual Current Monitoring per supply cable

    3

    32 A / 400 V / Residual Current Monitoring per supply cable

    32 A
    Show more
