The system is ideal for the flexible delivery of power and data to workstations, in partition systems, raised floors and other connection types.

Fit for the future – step by step

STEP embodies the principle of modularity with absolute consistency. The system is thus ideal for the flexible delivery of power and data to workstations, in partition systems, raised floors and other connection types.

The modular design of STEP power strips offers virtually endless possibilities: from simple electricity supply sets through to power strips with integrated data connections, RCDs/MCBs, surge protection, media technology connections and much more.

STEP is equipped with Wieland GST18i3 as standard for the power supply and can therefore be supplied with a variety of cable lengths. Other plug connector systems can also be supplied on request.

Perfectly tailored for the best connections

The STEP power strip is available with an aluminium or plastic profile. It is possible to connect multiple power strips together to form a modular system. STEP is designed primarily as a simple electricity supply unit for office workstations. Permanently installed devices such as PCs, monitors, printers, etc. can be connected to STEP.

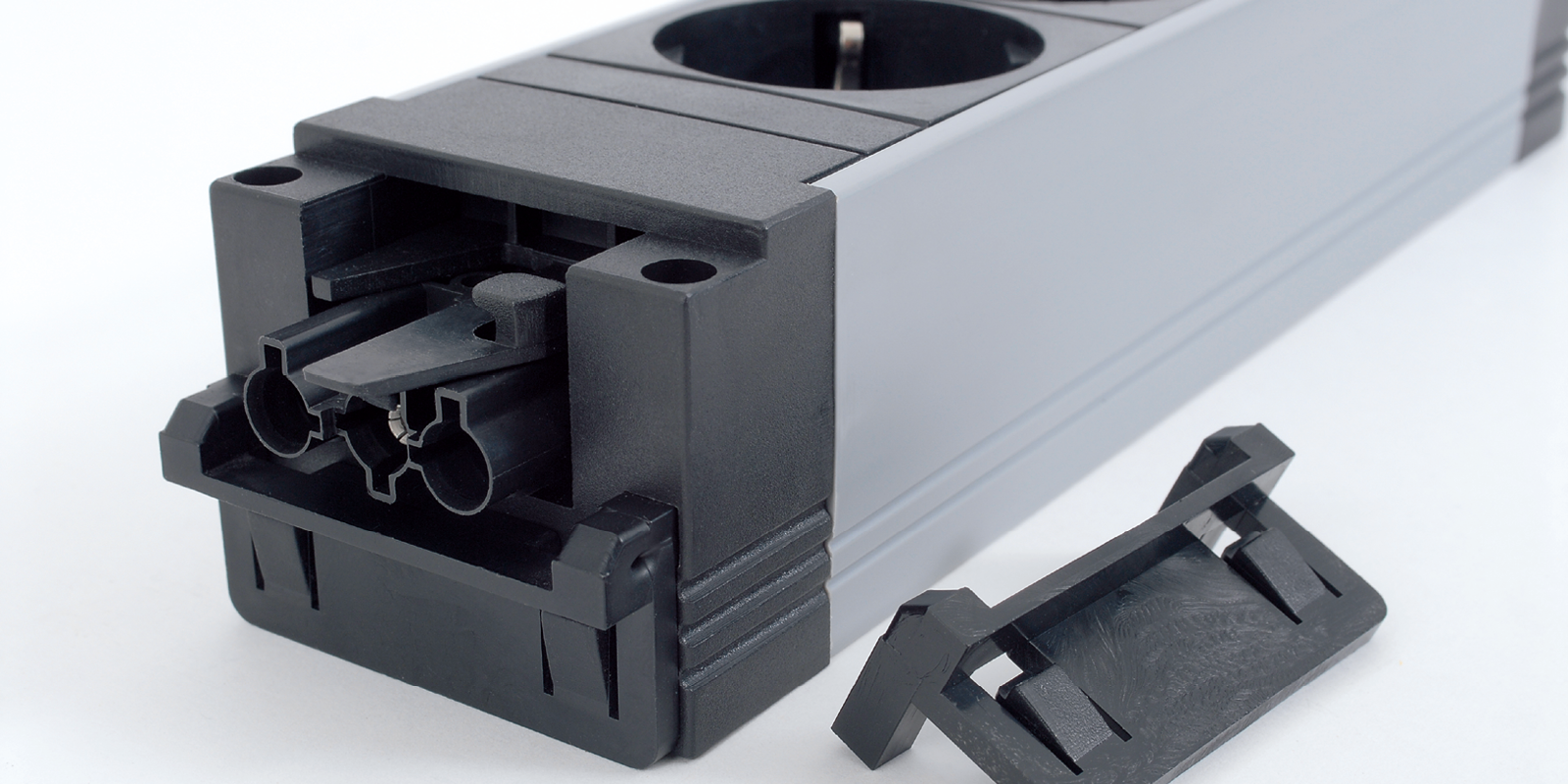

STEP power strips have a power input and a power output, each of which is built into the end caps on the face end. The Wieland GST18 plug connectors fitted are tried-and-tested solutions for office use, and have the coding and latch mechanism required to comply with the applicable

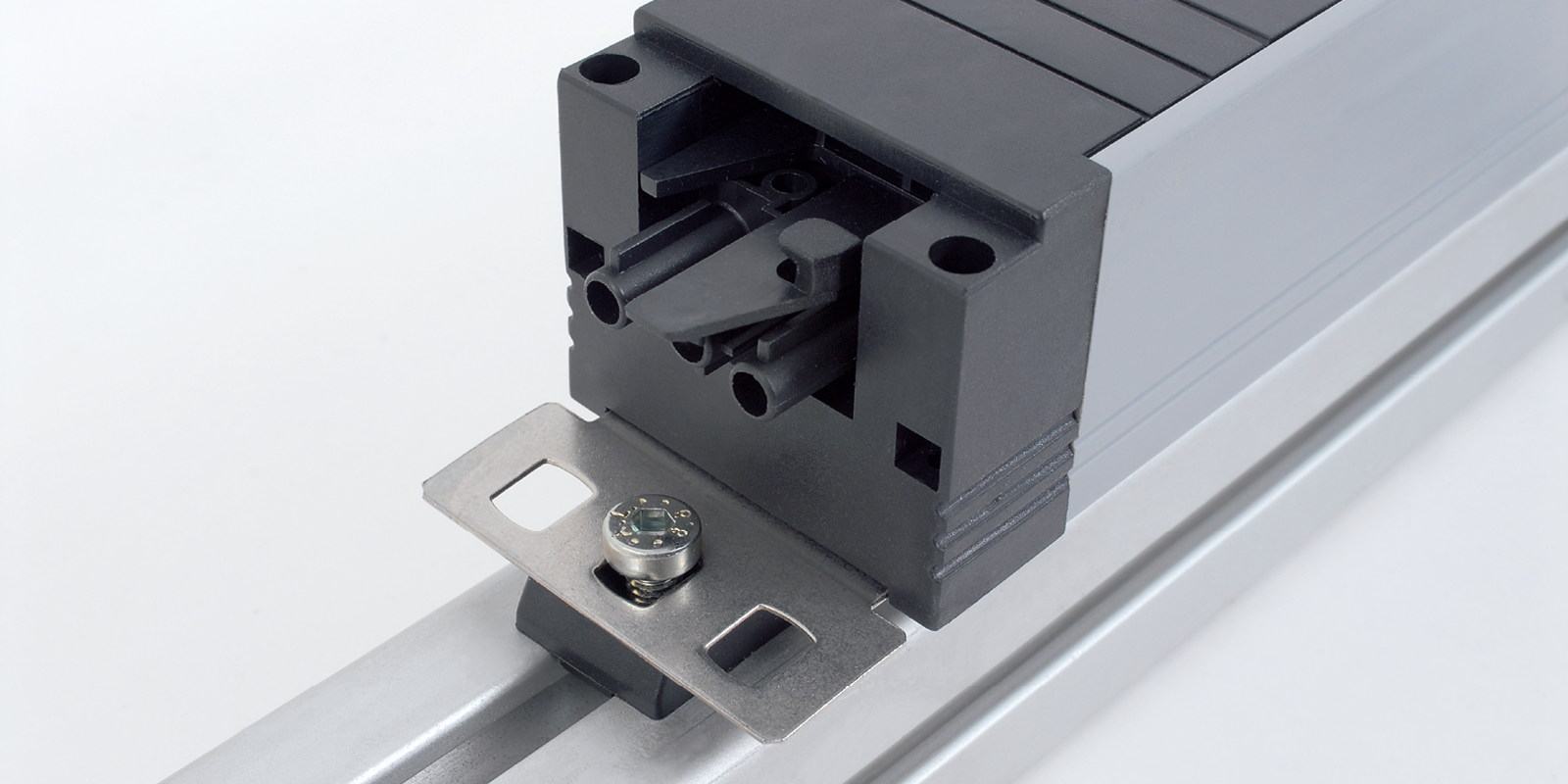

Various attachment options

STEP power strips are versatile in their application. They can be mounted under tables and desks, in cable ducts and in partitions, for example. Different attachment options are available for mounting to suit the various applications.

icon

Modularity

icon

Versatile applications

icon

Installation connection system as standard

icon

Functional efficiency

Technical data

Dimensions

from 220x52x44 mm

Socket orientation

35-45°

Profile

STEP BASE: plastic STEP ALU: aluminium

Icon_Colour_Edelstahl-Optik
Stainless steel look
Icon_Colour_Schwarz
Black
Socket outlet with earthing contact
UTE socket
UK socket (3,15 A)
Italy / socket outlet with earthing contact
Swiss socket (10 A)
USB Charger
Custom Module
Shutter

STEP

STEP BASE socket strips

Number of socket outlets with earthing contact
Number of other sockets
Number of sockets with earth pin
Number of Swiss standard type 13/type 23 sockets
Number of type Bipasso (Italy) sockets
Angle of twisted central insert
USB charger
Custom Module
Dimensions
336.606
Number of socket outlets with earthing contact
Number of other sockets
Number of sockets with earth pin 4
Number of Swiss standard type 13/type 23 sockets
Number of type Bipasso (Italy) sockets
Angle of twisted central insert 35°
USB charger
Custom Module
Dimensions 0.3 x 0.075 x 0.07
906.0055
Number of socket outlets with earthing contact
Number of other sockets 4
Number of sockets with earth pin
Number of Swiss standard type 13/type 23 sockets
Number of type Bipasso (Italy) sockets
Angle of twisted central insert 45°
USB charger
Custom Module
Dimensions 0.39 x 0.075 x 0.07
906.1306
Number of socket outlets with earthing contact
Number of other sockets 2
Number of sockets with earth pin
Number of Swiss standard type 13/type 23 sockets
Number of type Bipasso (Italy) sockets
Angle of twisted central insert 45°
USB charger
Custom Module
Dimensions 0.056 x 0.044
906.11931
Number of socket outlets with earthing contact
Number of other sockets 2
Number of sockets with earth pin
Number of Swiss standard type 13/type 23 sockets
Number of type Bipasso (Italy) sockets
Angle of twisted central insert 45°
USB charger
Custom Module
Dimensions 0.056 x 0.044
906.11930
Number of socket outlets with earthing contact
Number of other sockets 4
Number of sockets with earth pin
Number of Swiss standard type 13/type 23 sockets
Number of type Bipasso (Italy) sockets
Angle of twisted central insert 45°
USB charger
Custom Module
Dimensions 0.075 x 0.07
Show more

STEP BASE socket strips

Number of socket outlets with earthing contact
Number of other sockets
Number of sockets with earth pin
Number of Swiss standard type 13/type 23 sockets
Number of type Bipasso (Italy) sockets
Angle of twisted central insert
USB charger
Custom Module
Dimensions
906.0060
Number of socket outlets with earthing contact
Number of other sockets 4
Number of sockets with earth pin
Number of Swiss standard type 13/type 23 sockets
Number of type Bipasso (Italy) sockets
Angle of twisted central insert 45°
USB charger
Custom Module
Dimensions 0.4 x 0.055 x 0.05
906.11932
Number of socket outlets with earthing contact
Number of other sockets 4
Number of sockets with earth pin
Number of Swiss standard type 13/type 23 sockets
Number of type Bipasso (Italy) sockets
Angle of twisted central insert 45°
USB charger
Custom Module
Dimensions 55 x 50 mm
Show more

STEP ALU socket strips

Number of socket outlets with earthing contact
Number of other sockets
Number of sockets with earth pin
Number of Swiss standard type 13/type 23 sockets
Number of type Bipasso (Italy) sockets
Angle of twisted central insert
USB charger
Custom Module
Dimensions
336.079
Number of socket outlets with earthing contact
Number of other sockets 2
Number of sockets with earth pin
Number of Swiss standard type 13/type 23 sockets
Number of type Bipasso (Italy) sockets
Angle of twisted central insert 45°
USB charger
Custom Module 1
Dimensions 0.315 x 0.075 x 0.075
906.0241
Number of socket outlets with earthing contact
Number of other sockets 2
Number of sockets with earth pin
Number of Swiss standard type 13/type 23 sockets
Number of type Bipasso (Italy) sockets
Angle of twisted central insert 45°
USB charger
Custom Module 1
Dimensions 0.075 x 0.075
Show more

STEP safety modules

Feature list
336.014
Feature list Width: Approx. 220 mm
25 A residual-current device
Response current 30 mA
Response time 30 ms
2-pole
336.065
Feature list Width: Approx. 220 mm
Residual-current device
Response current 30 mA
Response time 30 ms
2-pole
Miniature circuit breacker, 16 A nominal current
Characteristic B; 6 kA
906.067
Feature list Width: 220 mm
16 A residual-current device
Response current 10 mA
Response time 30 ms
2-pole
Show more

STEP safety modules

Feature list
336.015
Feature list Width: Approx. 220 mm
Miniature circuit-breaker 16 A, 2-pole
Characteristic B
Show more

STEP safety modules

Feature list
336.003
Feature list Width: Approx. 145 mm
Surge protection 2 kV with function and fail indicator
336.004
Feature list Mains and frequency filter
Width: Approx. 220 mm
Surge protection 2 kV with function and fail indicator
Mains filter, 30 MHz
Show more

STEP accessories

Feature list
375.529
Feature list For fitting over the end caps of STEP power strips
Visual finish
Black plastic
Packaging unit: 2 units
Show more

STEP accessories

Feature list
940.097
Feature list For insertion into the rear of a STEP profile
For screw fixing e.g. under a desk or table
Packaging unit: 2 units
Show more

STEP accessories

Feature list
940.024
Feature list For insertion into the rear of a STEP profile
With elongated hole (keyhole) for screwing into place, ideal for use with power strips with data connections
Packaging unit: 1 x left, 1 x right
Show more

STEP accessories

Feature list
940.096
Feature list Mounting brackets left and right
Show more

STEP accessories

Feature list
918.025
Feature list For attaching STEP BASE and STEP ALU power strips
In suitable cut-outs in sheet steel (thickness 2.0 mm)
2 x plastic mounting clips
4 x screws, 2.9 x 30 mm
Show more

STEP accessories

Feature list
940.108
Feature list For insertion into rear of STEP profile
The power strip is fixed by screwing the nut onto the threaded screw
1 mounting plate including M5 screw, washer and nut
Show more

STEP accessories

Feature list
375.502
Feature list 4 x screws, 2.9 x 30 mm
2 x end cap cover strips to provide a visual finish (fitted on the end caps where two power strips are linked together)
1 x connection cover
1 x end cap for power output socket
Show more

STEP accessories

Feature list
918.123
Feature list Double-sided adhesive mirror tape
Dimensions 200 x 30 x 3 mm
Show more
