Kitchen connection box

Kitchen connection box

Kitchen connection box

The universal accessory for connecting hob, oven and dishwasher...
  • Distribution box VDE-approved
  • Simple, fast mounting
  • No additional sockets required
  • Existing sockets can still be used

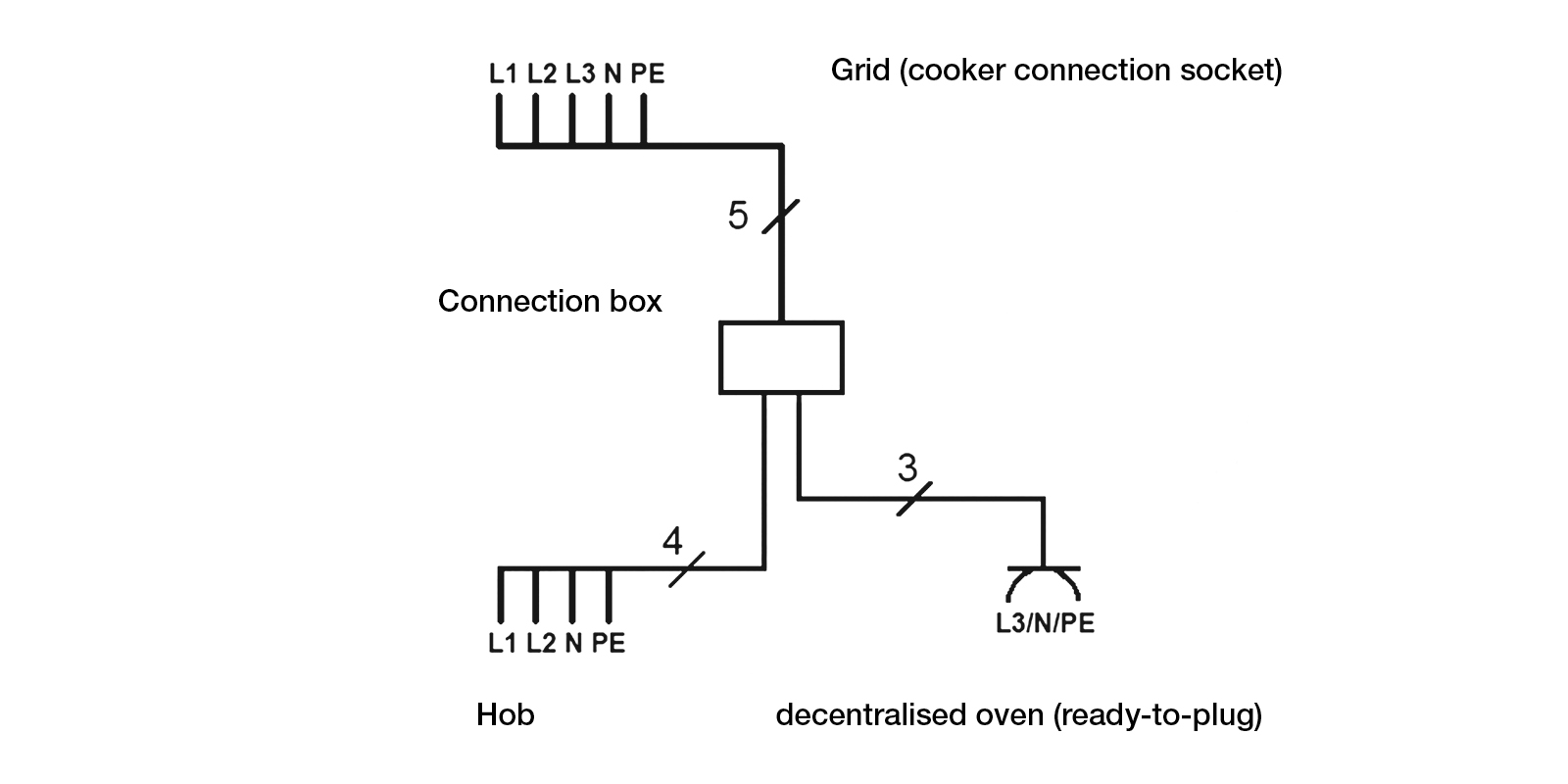

The kitchen connection box is the universal assembly aid for the kitchen. It is used when a hob and oven are not installed as a combined appliance. The kitchen connection box serves as a power distributor for separately installed kitchen appliances, in order to supply them with power centrally from an existing cooker connection socket. It is available in four different supply cable versions and thereby permits flexible use depending on the situation in the respective kitchen.

There is no need to install additional sockets, helping to save both time and money when installing kitchen appliances.

Technical data

Profile

plastic

Mounting depth

approx. 34 mm

Icon_Colour_Hellgrau
Light grey

Kitchen connection box

Kitchen connection box

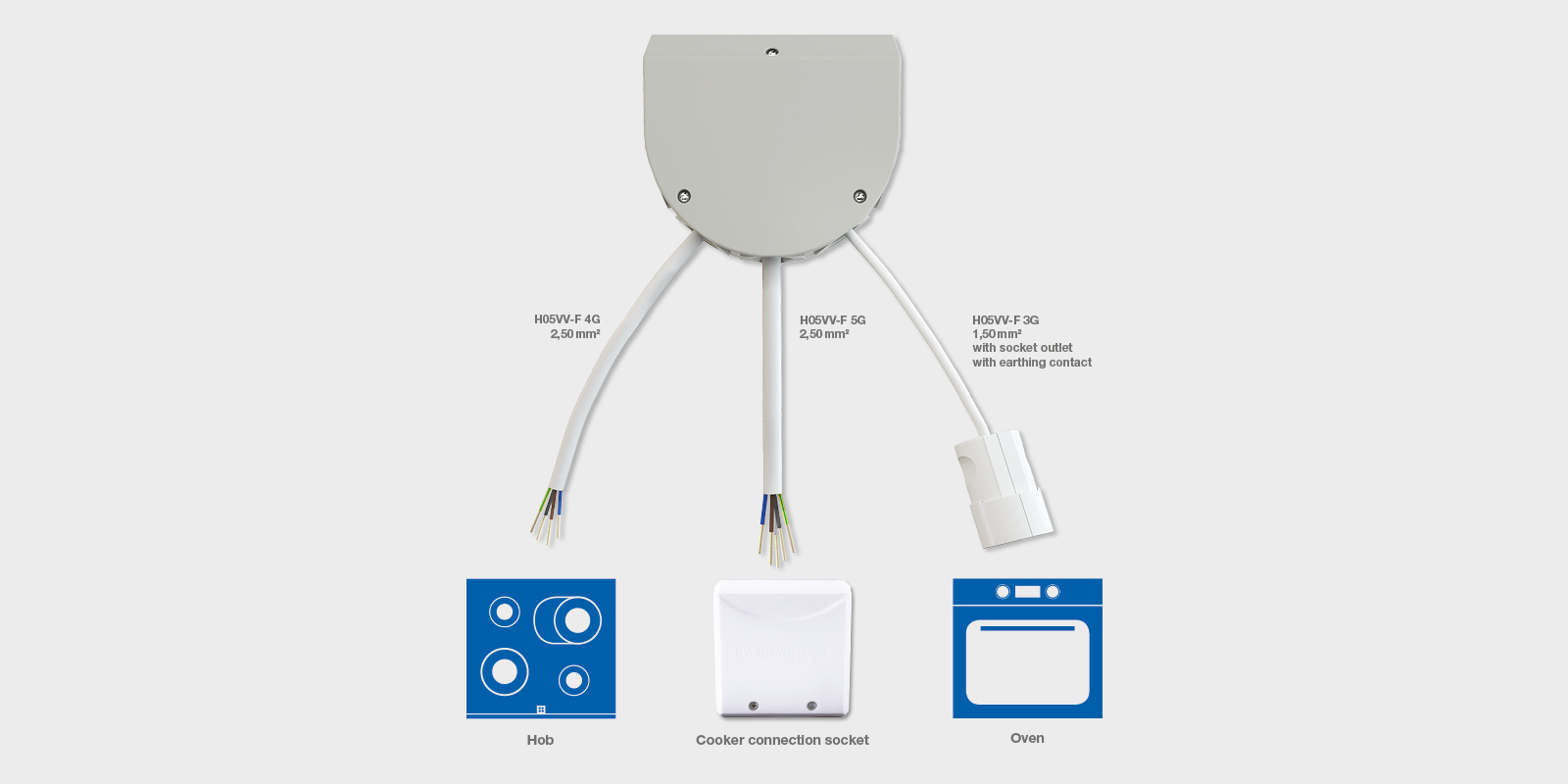

  • Grey, with screw-mounting eyes, connected load up to 11 kW (with ohmic load)
  • H05VV-F 5G 2.50 mm² for cooker connection box
  • H05VV-F 4G 2.50 mm<sup>2</sup> for hob
  • H05VV-F 3G 1.50 mm<sup>2</sup> with socket outlet with earthing contact for oven

Kitchen connection box 10 m

Kitchen connection box 10 m

Feature list

Kitchen connection box 10 m

923.002
Feature list Cooker connection box 2.0 m
Hob 10.0 m and oven 10.0 m
Show more

Kitchen connection box

Kitchen connection box 2 m

Kitchen connection box 2 m

Feature list

Kitchen connection box 2 m

923.000
Feature list Cooker connection box 2.0 m
Hob 2.0 m and oven 2.0 m
Show more

Kitchen connection box

Kitchen connection box 5 m

Kitchen connection box 5 m

Feature list

Kitchen connection box 5 m

923.001
Feature list Cooker connection box 2.0 m
Hob 5.0 m and oven 5.0 m
Show more
